Upgrading to Smart Locks in Malaysia: Installation Guide
Key Takeaways:
- Most Malaysian homes have a metal grille gate and a wooden main door. Make sure the smart lock handles have enough space and will not hit each other when the doors open.
- Many condominium doors are fire-rated for safety. Drilling or modifying them incorrectly can break building regulations and may affect your insurance coverage.
- Malaysia’s hot and humid weather can cause cheap alkaline batteries to leak and damage your smart lock. Use high-quality batteries recommended by the manufacturer.
- Measure before you buy. Before ordering a smart lock, check your door’s thickness, backset, and mortise size to make sure the lock will fit properly.
- If you live in a condominium or apartment, your Joint Management Body (JMB) may require approval before you change any door hardware that is visible from common areas.
Smart lock installation in Malaysia involves retrofitting electronic keyless locking systems onto wooden main doors or security grille gates. The process requires precise physical measurements of door thickness, backset clearance, and gate gaps, alongside strict compliance with Malaysian high-rise fire safety codes (BOMBA) and condo management guidelines.
Most Malaysian homes commonly have solid wooden doors, metal grille gates, fire-rated condominium doors, and other unique door setups.
Before you spend money on a smart lock installation, it is important to check whether it will fit your door and meet your building’s requirements. In many cases, professional locksmiths in Malaysia can help assess compatibility and ensure the installation is done correctly.
This guide will help you avoid costly mistakes and ensure your smart lock installation is smooth, safe, and hassle-free.
Do a Pre-Installation Check
Before you click buying a smart lock, take a few minutes to properly check your grille gate and door and entrance setup.
This simple step can save you a lot of frustration later. In fact, skipping a pre-installation inspection is one of the most common reasons homeowners end up regretting their smart lock purchase.
The Three Measurements You Must Take
Before purchasing a smart lock, make sure you take the following three important measurements. A few minutes of checking now can save you from expensive installation problems later.
1. Measure Your Door Thickness
Most smart locks are designed for doors that are between 35mm and 50mm thick.
Many modern condo and apartment doors in Malaysia fall perfectly within this range, though fire-rated high-rise doors often lean toward the thicker side (around 45mm to 50mm). However, some older landed homes may have thinner plywood doors or decorative carved doors that need extra spacer plates for the lock to fit securely.
Tip: Measure your door thickness with a measuring tape before ordering any smart lock.
2. Measure the Backset Distance
The backset is the distance from the edge of the door to the center of the keyhole or door handle.
The most common backset sizes in Malaysia are:
- 60mm
- 70mm
This measurement is important because the smart lock’s mortise lock must fit inside your door correctly. If the lock requires more space than your door can provide, the installer may need to remove too much wood, which can weaken the door structure.

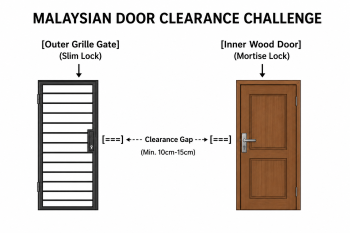

3. Check the Gap Between Your Grille Gate and Main Door
This is one of the most overlooked measurements in Malaysian homes.
Many landed houses and condominiums have:
- An outer steel or aluminium grille gate
- An inner wooden main door
When both doors are closed, measure the distance between them.
A simple rule is:
Clearance Gap ≥ Grille Gate Lock Thickness + Main Door Lock Thickness
If the gap is less than 10cm to 15cm, the handles of the two smart locks may hit each other whenever the doors are closed. This can cause scratches, damage, and make the locks difficult to use.
Tip: Always check the manufacturer’s dimensions and compare them with your actual door gap before buying.
Helpful Tips for Choosing Smart Door Locks
Many smart locks come with flashy screens and fancy features, but not all of them are practical for everyday use.
Before you buy, make sure your smart lock includes these important features.
Choose a Smart Lock with a Physical Key Backup
Even the best electronic devices can fail or run out of battery.
That’s why every smart lock should have a hidden physical key slot. If the lock stops working or the batteries are completely drained, you can still unlock your door with a traditional key.
Why it matters: A physical key backup can save you from being locked out of your home late at night.
Look for Dual-Door Unlocking Features
Many Malaysian homes have:
- An outer grille gate
- An inner wooden main door
Opening two separate smart locks every time can be inconvenient. Some smart lock brands offer dual-door syncing, allowing one fingerprint scan or unlock command to open both doors at the same time.
Why it matters: Faster entry and a more convenient daily experience.
Check for Matter Compatibility
Smart homes are becoming more common, and different devices need to work together smoothly.
A smart lock that supports Matter can connect more easily with smart home systems, including:
- Smart lighting
- Security cameras
- Home automation devices
- Voice assistants
Why it matters: Matter compatibility helps future-proof your smart home and reduces dependence on unreliable third-party apps.
Make Sure It Has an Emergency Power Backup Port
A quality smart lock should include an external emergency power port, usually:
- USB-C
- Micro-USB
- 9V battery contact point
If the internal batteries run out completely, you can temporarily power the lock using a power bank or battery to regain access.
Why it matters: You can unlock your door even when the lock’s batteries are fully depleted.
Quick Smart Lock Buying Checklist
Before purchasing a smart lock, make sure it has:
- Physical key override
- Dual-door unlocking support, if you have a grille gate
- Matter compatibility
- Emergency external power backup port
Choosing a lock with these essential features can help you avoid common problems and enjoy a safer, more reliable smart home experience.
Learn more: Can a Locksmith Open Digital Door Locks? A Malaysian Homeowner’s Guide
Smart Lock Battery Maintenance Tips for Malaysia’s Hot and Humid Climate
High humidity and heat can cause low-quality alkaline batteries to deteriorate faster. Over time, these batteries may leak corrosive chemicals inside the battery compartment.
When this happens, the liquid can damage the lock’s internal electronic components and motherboard. In many cases, the damage is permanent and can lead to costly repairs or a full lock replacement.
How to Protect Your Smart Lock
Follow these simple battery maintenance tips:
Use High-Quality Batteries
Avoid cheap, generic batteries whenever possible.
Instead, choose:
- Premium alkaline batteries from trusted brands
- Leak-resistant batteries
- Lithium batteries designed for warm environments
Higher-quality batteries are less likely to leak and usually last longer.
Never Mix Old and New Batteries
Always replace all batteries at the same time.
Mixing old and new batteries can cause uneven power usage, which may increase the risk of battery leakage and reduce overall performance.
Check the Battery Compartment Every 6 Months
Make it a habit to inspect the battery compartment at least twice a year.
Look for signs of:
- White powdery residue
- Rust or corrosion
- Battery leakage
- Damaged battery contacts
Finding these issues early can help prevent serious damage to your smart lock.
Quick Battery Maintenance Checklist
- Use high-quality batteries
- Replace all batteries together
- Avoid mixing old and new batteries
- Inspect the battery compartment every 6 months
- Replace batteries immediately if you notice leakage or corrosion
With proper battery care, your smart lock can stay reliable, secure, and protected from Malaysia’s challenging tropical climate for many years.
Professional Smart Lock Installation vs. DIY
Can you handle a smart lock installation in Malaysia by yourself?
It depends heavily on the type of lock you purchased and your personal comfort level with heavy power tools.
| Feature / Factor | DIY Installation | Professional Locksmith |
| Best Suited For | Simple rim locks or drop-bolt additions. | Heavy-duty mortise lock replacements and fire doors. |
| Tool Requirements | Basic screwdriver, measuring tape, and a hand drill. | Industrial routers, specialized hole saws, and alignment jigs. |
| Risk of Failure | High. Misaligning the door strike by 2mm can trigger constant error alarms. | Minimal. Professional work typically includes a physical structural warranty. |
| BOMBA / JMB Safety | High risk of accidentally compromising a fire-rated condo door. | Certified installers ensure changes adhere to building management guidelines. |
Most smart locks require precise cutting and drilling, especially when installing a new mortise lock on a solid wood door. This work requires special tools and accurate measurements.
If the lock is installed slightly out of alignment, the locking bolts may rub against the strike plate every time the door locks or unlocks.
This extra friction can cause several problems, including:
- Faster battery drain
- Slower lock operation
- Increased wear and tear on internal components
- Locking mechanism failure over time
In some cases, a smart lock that should run for several months on one set of batteries may need battery replacements after only a few weeks.
Professional Installation Benefits
A professional installer can ensure that:
- The lock is properly aligned
- The mortise cavity is cut accurately
- The locking bolts move smoothly
- The smart lock operates efficiently
- The door structure remains strong and secure
While DIY installation may save money upfront, professional installation can help prevent costly mistakes and extend the lifespan of your smart lock.
Conclusion
Upgrading to a smart lock is convenient, but rushing the installation without checking your door size or condo rules can be costly.
Be sure to measure your door carefully, choose durable locks suited for Malaysia’s hot and humid weather, and make sure your building allows the installation before making changes.
If you want to avoid mistakes, damage, or issues with management approval, consider getting help from professionals.
You can find trusted and verified local locksmiths in Malaysia through our business directory in Malaysia that connects you with experienced experts for safe and proper installation.
Sources:
- Xenoliving (Feb 25, 2026): Digital Door Lock Installation Rules for KL Condos Explained – Confirms JMB/MC high-rise regulations, BOMBA compliance framework, and impacts on home insurance.
- Palcon Energy & Engineering (n.d.): Fire Rated Door Malaysia | Fire-Resistant Door Provider & Supplier – Establishes materials, structural integrity, and legal compliance mandates under Malaysian statutory requirements.
- Smart Lock Malaysia / Igloohome (n.d.): Door Compatibility Guide – Verifies standard door thickness metrics (35mm–60mm) and clearance baselines.
- Abrain Smart Door Lock (n.d.): Door-Lock-Measurement Guide – Validates standard physical dimensions and the industry-minimum door-to-grille clearance requirement (85mm).
- Kaadas Malaysia (n.d.): Digital Gate Lock Malaysia | For Metal & Security Gates – Confirms technical data on ultra-slim 1.3cm profiles and synchronized dual-door wireless unlocking systems.
Frequently Asked Questions About Smart Locks in Malaysia
1. Do I need explicit permission from my condo management (JMB/MC) to install a smart lock?
Yes, it is highly recommended. Many modern high-rise buildings in Malaysia maintain strict renovation guidelines regarding outward-facing hardware to preserve visual uniformity and uphold building-wide fire safety standards (Xenoliving, 2026b). Checking your specific handbook first avoids forced removals or unexpected fines (Xenoliving, 2026b).
2. What happens if the smart lock battery dies while I am away?
You will not be locked out permanently. High-quality smart locks feature an external emergency backup port on the outer panel. You can plug in a portable power bank via USB-C or press a 9V battery against the exterior contact points to give the system enough temporary power to read your fingerprint or PIN code. Alternatively, you can always use your hidden, physical mechanical override key.
3. Can I install a smart lock if my home features an outer iron grille gate?
Yes, but you must shop for a specialized, slim-profile smart grille lock. Standard smart locks designed for main wooden doors are too thick to fit within the narrow framing of an iron gate, and their bulky handles will clash with your inner main door.
4. Will modifying my main door to fit a smart lock void my high-rise fire rating?
It can if the installation involves extensive structural drilling, cutting, or using non-fire-rated components (Xenoliving, 2026b). Under Malaysian Uniform Building By-Laws, condo unit main doors must maintain their approved fire protection rating (Palcon, n.d.; Malaysian Fire Protection Association, 2021). To protect your home insurance policy, ensure you use a certified installer and a lock that matches fire-compliance standards (Xenoliving, 2026b).
5. How often should I replace the batteries in a smart lock under Malaysian weather conditions?
Do not wait for the low-battery warning to flash. Due to Malaysia’s high tropical humidity and warm temperatures, standard alkaline batteries face an accelerated risk of degradation and chemical leakage. Inspect the battery housing every 6 months, and proactively replace the cells annually with premium, leak-resistant variants.
6. Is it safer to hire a professional installer instead of trying a DIY installation?
For premium mortise-style smart locks or high-rise fire-rated doors, professional installation is strongly recommended. Professional locksmiths utilize specialized alignment templates and routing jigs to ensure smooth mechanical movement, preventing motor strain and protecting the structural integrity of your entry door (Xenoliving, 2026b).
